How to create Paper (Mario) Maps
Contents
Pretty Paper (Mario) Maps quickly done with QGIS and Aerialod.
Credits
- Thanks to Helen McKenzie for inspiration.
Idea
The whole idea of paper maps is to make 3D data appear as if it was made from paper.

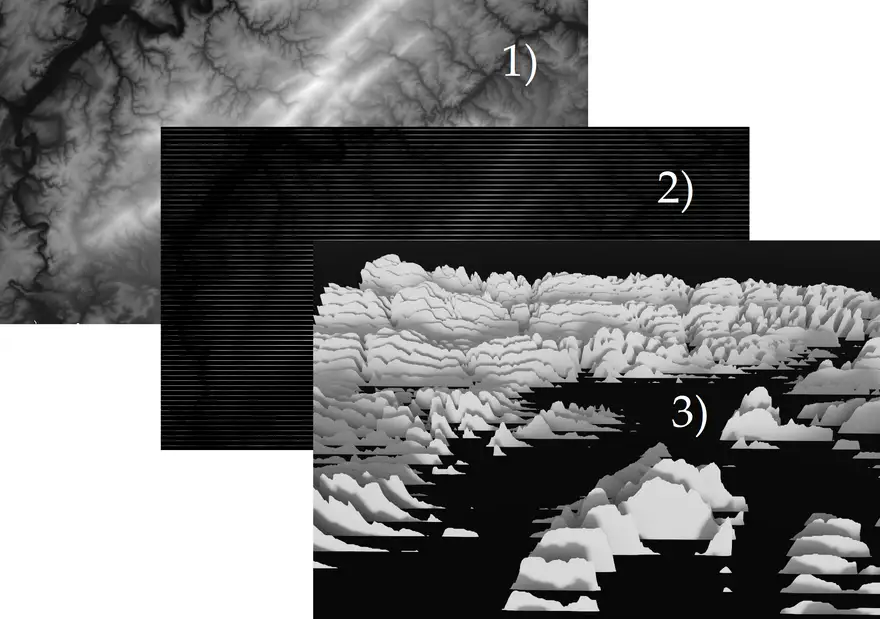

- Starting with a normal DEM (1), the playful effect can easily be obtained through
- oversetting the raster values for some rows while keeping the distance between the “sheets” of paper. Technically it can be achieved by overlaying a simple black grid.
- In the last step, Aerialod is doing the rest.
Mathematical background
As raster data is nothing but a 2D array, the mathematical operation is quite simple. We keep every n-th row and set the other values to 0 (or the respective min value) representing the color black while other numbers a different gray shades.
| Original Raster | versus | Paper-Like Raster | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
Notice the zeros? Those are causing the necessary “gaps” as Aerialod interprets black as low and white as high. Let’s get hands on!
Workflow
1. Load DEM data in QGIS
Download some digital elevation model (DEM), e.g. from earthexplorer and drag’n’drop it in QGIS.
2. Create a line grid

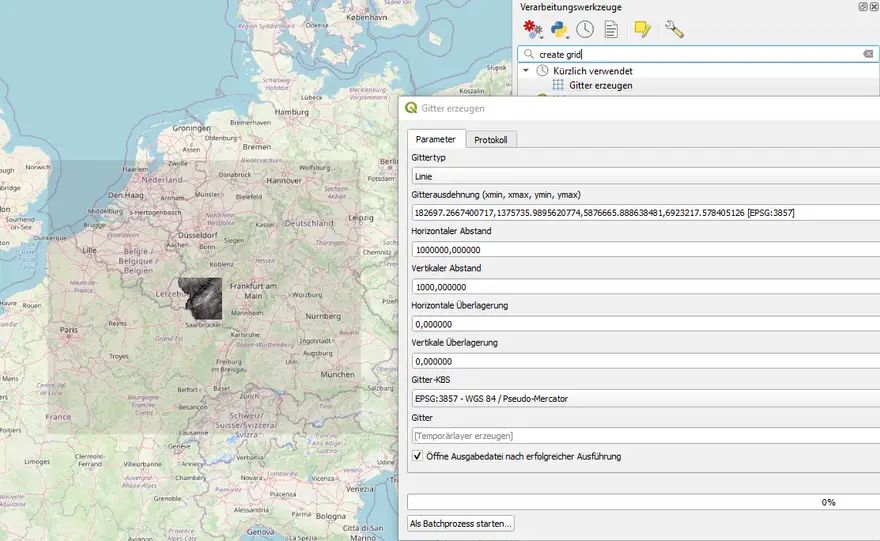

In QGIS use the tool Create Grid. It creates a grid, but what we want is actually just the parallel horizontal lines. In order to avoid the vertical lines, choose a way bigger area for the tool than the extent of your DEM.
In my case I took a DEM for Rheinland-Pfalz in Germany but choose a larger grid extent. In this manner, we set the horizontal value very high and the vertical low in order to space the wanted lines densely and the unwanted widely. You will likely need to experiment a little here.
In case you are left with only one unwanted vertical line, simply edit the layer, mark the line and remove it.

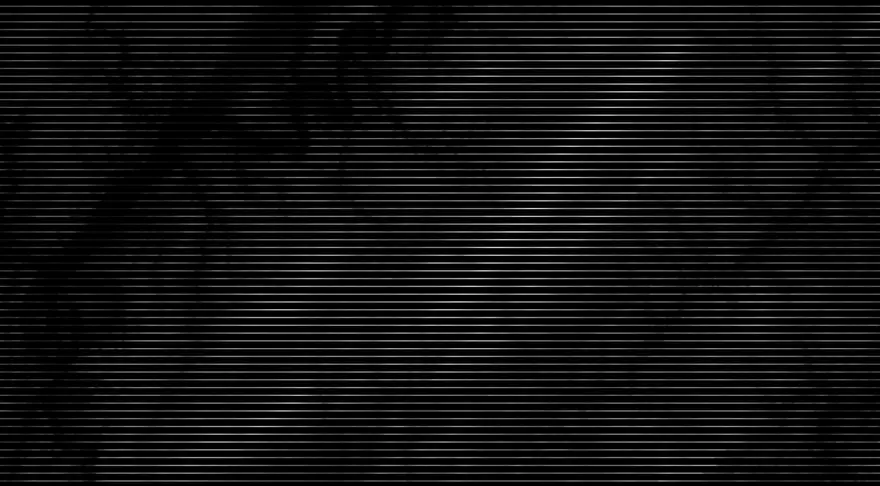

Now do some fine tuning and style the grid in way that the lines become as thin as possible on your desired zoom level. Change the color to black.
Now either take a screenshot (resolution usually sufficient even on a laptop) or create a print layout, add map and export as an image with high resolution, e.g. 600 dpi.
3. 3D in Aerialod
Drag’n’drop the picture in Aerialod and it’s done! Feel free to take my picture to play around. See what you can do with it with slightly different settings.
